16M Honda Concrete Truss Screed Machine

Share to:
    Payment Type: L/C,T/T,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 5 Days

Basic Info

Model No.: FZP-130

Shotcrete Type: Semi-Dry

Certification: ISO9001: 2000, CE

Condition: New

Color: Yellow

FZP-55 (4m To 7m): Use Honda GX160 Gasoline Engine

FZP-90 (8m To 11m ): Use Honda GX270 Gasoline Engine

FZP-130 (12m To 16m): Use Honda GX390 Gasoline Engine

Engine Power: 5.5HP, 9HP, 13HP

Working Width: 260mm

Frequency: 70HZ

Standard Section: 1m / 2m

Additional Info

Packaging: Wooden case

Productivity: 100 sets per month

Brand: FURD

Transportation: Ocean,Land,Air

Place of Origin: Jining, China

Supply Ability: 100 sets per month

Certificate: ISO

HS Code: 84791021

Port: Qingdao,Shanghai,Tianjin

Product Description

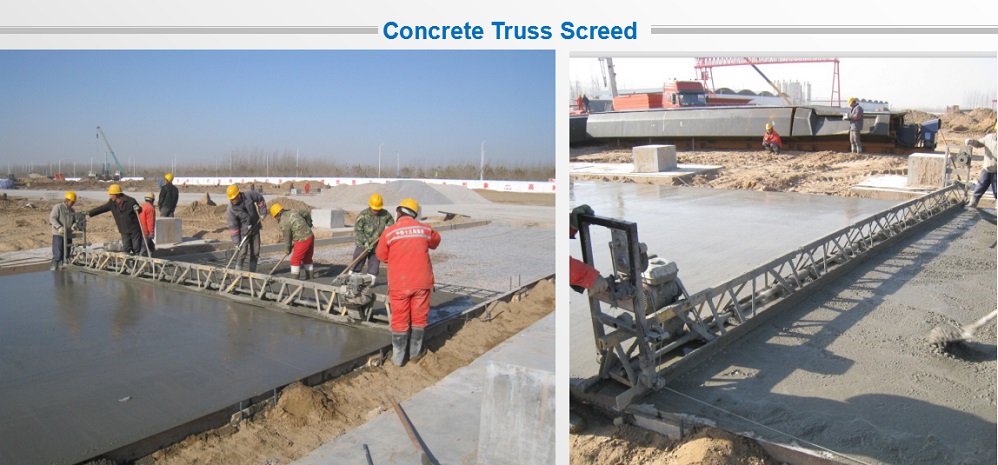

Concrete Truss Screed use steel truss screed vibrator with honda engine applied to slurry extracting,compaction and leveling of concrete road surface. Using for concrete road (land/ bridge) surface lift pulp, vibrated, leveling. It mainly used for roads, squares and modern factory building. And it is a traditional paver upgrading products. This machine can choose gasoline engine or electromotor.

The length of concrete truss screed is from 4m to 16m optional.

4m to 7m trusss creed use Honda GX160 gasoline engine, the horse power is 5.5HP;

8m to 11m truss screed use Honda GX270 gasoline engine, the horse power is 9HP;

12m to 16m truss screed use Hodna GX390 gasoline engine, the horse power is 13HP.

Concrete Truss Screed

Concrete Truss Screed Technical Parameter:

Model

FZP-55

FZP-90

FZP-130

Engine Model

HONDA GX160/Electric

HONDA GX270/Electric

HONDA GX390/Electric

Power

5.5HP/4.0kw

9HP/5.5kw

13.0HP/7.5kw

Working Width

4m-7m

8m-12m

12m-16m

Working Depth

260mm

260mm

260mm

Vibration Frequency

70Hz

70Hz

70Hz

Standard Section

1000/2000mm

1000/2000mm

1000/2000mm

Features:


1) Light weight, high strength, full steel truss, cold rolled baseplate.

2) Fast connect system for assembly without special tools.

3) One side winches for one person operation.

4) The length of Concrete Screed machine is from 4meters to 16meters optional.

5) Engine optional: Honda Gasoline Engine/ Kolher Gasoline Engine /Mitsubishi Gasoline Engine/Briggs and Stratton



Concrete Truss Screed


Concrete Truss Screed


FURD Factory:

Jining Furuide Machinery Manufacturing Co., Ltd is high-tech enterprise specialized in research & development and manufacture of Vibratory Road Roller since 2006. Our main products are: Road Roller, Concrete Laser Screed, Concrete Truss Screed, Mobile Light Tower, Road Crack Sealing Machine with CE, EPA, ISO 9001 and ISO1400 certification.

We have professional R&D team in design and producing all of light construction machines, with strict quality control system and continued efforts to ensure high quality of our products.

Our products have good quality and competitive prices, have been exported to more than 50 countries of the world, such as Australia, America, Canada, Russia, Brazil, Qatar, UAE and so on. FURD aim to supply first-class products to the domestic market and the global.

Concrete Truss Screed


FURD Series Concrete Machines:

Concrete Truss Screed

Thanks to pay attention to our products. We will be appreciate to hear from you for any question. If you need any information, please don`t hesitate to contact us, we will at your service 24hours.

Concrete Truss Screed


Looking for ideal Concrete Truss Screed Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Honda Truss Screed are quality guaranteed. We are China Origin Factory of Truss Screed Machine. If you have any question, please feel free to contact us.
