Home > Products > Laser Screed > Six Wheel Ride On Laser Screed > Factory Sell Concrete Laser Screed

Factory Sell Concrete Laser Screed

Share to:
    Payment Type: L/C,T/T,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Bag/Bags
    Delivery Time: 7 Days

Basic Info

Model No.: FJZP-200

Engine Model: Honda GX630, Electric Start

Power: 20HP/3600rpm

Drive: Hydraulic Motor

Width: 2500mm

Paving Mode: Paving Auger

Screed Head Type: Swing Type

Paving Depth: 30-200mm

Forward, Backward: Handle Control, CVT

Steering: Hydraulic Control

Control Effect: Plane, Slope Or Dual Slope

Additional Info

Packaging:  Wooden case or according to customers' requirements

Productivity:  10 Set/Sets per Month

Brand: FURD

Transportation: Ocean,Land

Place of Origin: Shandong, China

Supply Ability: 10 Set/Sets per Month

Certificate: CE, ISO

HS Code: 8479102100

Port: Qingdao,Ningbo,Guangzhou

Product Description

Concrete Laser Screed is ride on type Six-wheel Laser Screed, it can adopts Trimble or Leica laser styems, could levelling plane, slope or dual slope, has superior levelling effect, adopts imported Danfoss hydraluc pump, hydralic drive, the brand of main pump is Poclain or Italy Hansatamp, our Laser Screed Machine adopts auger paving and solid puncture-proof tyre, it has integrated computer controller and high pressure water pump, can clean the machine at any time.

The concretre laser screed is concrete construction in large area, such as workshop, supermarket, warehouse, airport, square and so on, can meet the construction requirement of high flatness and levelness for large area.

Technical Parameters

Model

FJZP-200

Engine

Leveling System

Engine Model

Honda GX630, Electric Start

Width

2500mm

Type

Gasoline Engine,
OHV, double cylindrer

Paving Mode

Paving Auger

Power

20HP/3600rpm

Power Auger

High Torque
Hydraulic Motor

Fuel Tank Capacity

40L

Centrifugal Force

500N

Lubricant

1.5L

Vibration Frequency

50Hz

Fuel Consumption

313g/kWh

Screed Head Type

Swing type

Travel System

Screed Plate Height

330mm

Drive

Hydraulic motor,
Four-wheel drive

Paving Depth

30-200mm

Wheel

Solid puncture proof tyre

Translational Range

500mm

Speed

0-70m/min

Operation

Laser Control

Forward, Backward

Handle Control, CVT

Control

Microcomputer
Laser scanning

Steering

Hydraulic Control

Control Effect

Plane, slope or dual slope
(three-dimensional)

Cleaning System

Dimensions and Weight

Power

Hydraulic Motor

Dimensions

2554*2500*2360mm

Theoretical Flow

20L/min

Weight

1080kg

Rated Pressure

7MPa

Product Feature

1.Used high accuracy laser device, close loop control technology and precision integrated hydraulic system, and microcomputer automatic control. Concrete Screed Machines

2.Screed assembly is hydraulic controlled. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.

3.The laser transmitter which measures the elevation is independent located, so there is no worry about the accumulative error. Compared with the traditional way, the construction joints will be greatly reduced, so the maintenance cost and slab use will be down greatly. concrete laser screed

4.The flat and dual slope can be fully automatic controlled by the transmitter. For the complex floor which has high requirement for drainage, the 3-D floor processing system can be used.

5.The forward-seated operation can widen operator vision, reduce the labor intensity and improve working efficiency.

6.Steering, forward and reverse of the machine are all controlled by the integrated handles. Operation buttons and controller which are located on the one side of the seat, is user-friendly.

FJZP-200 laser screed future

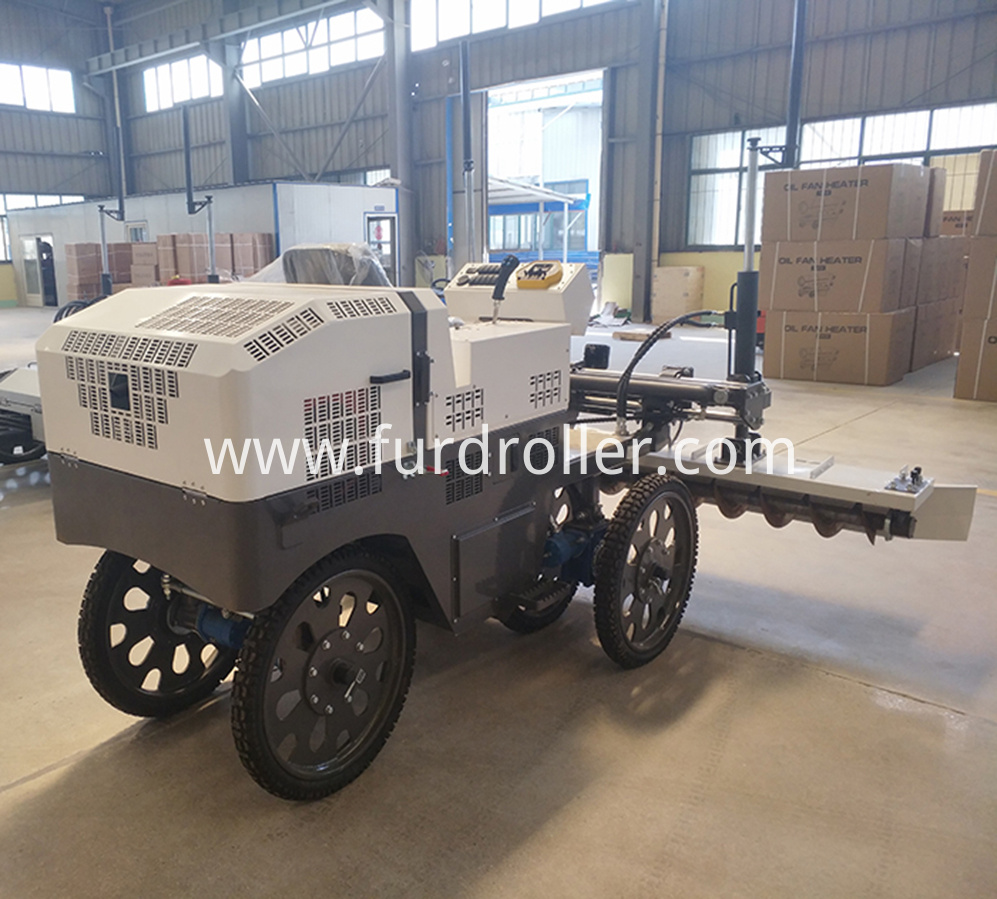

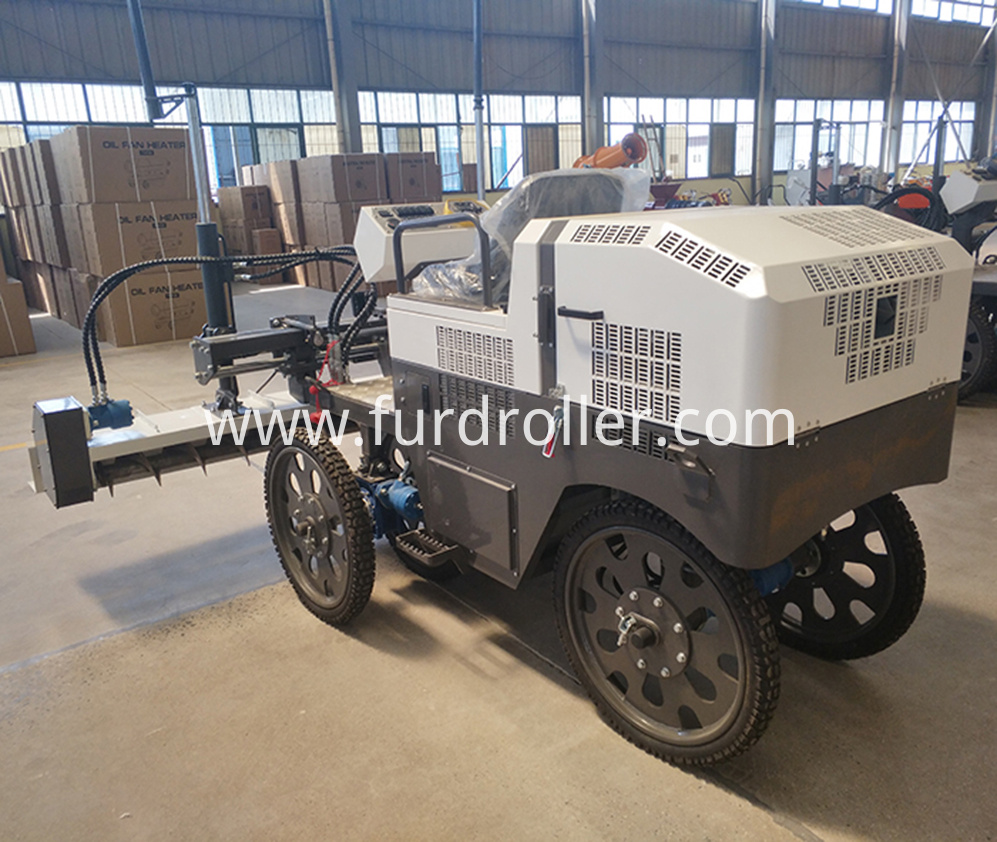

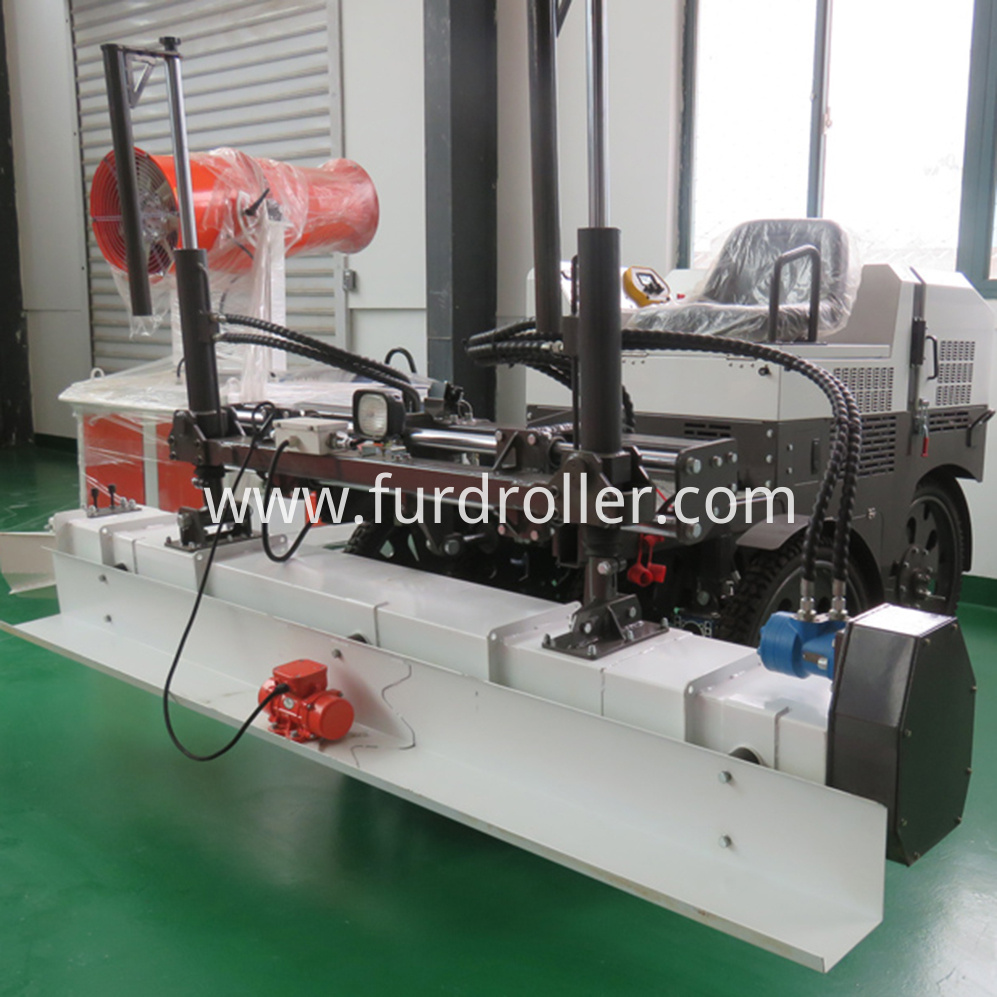

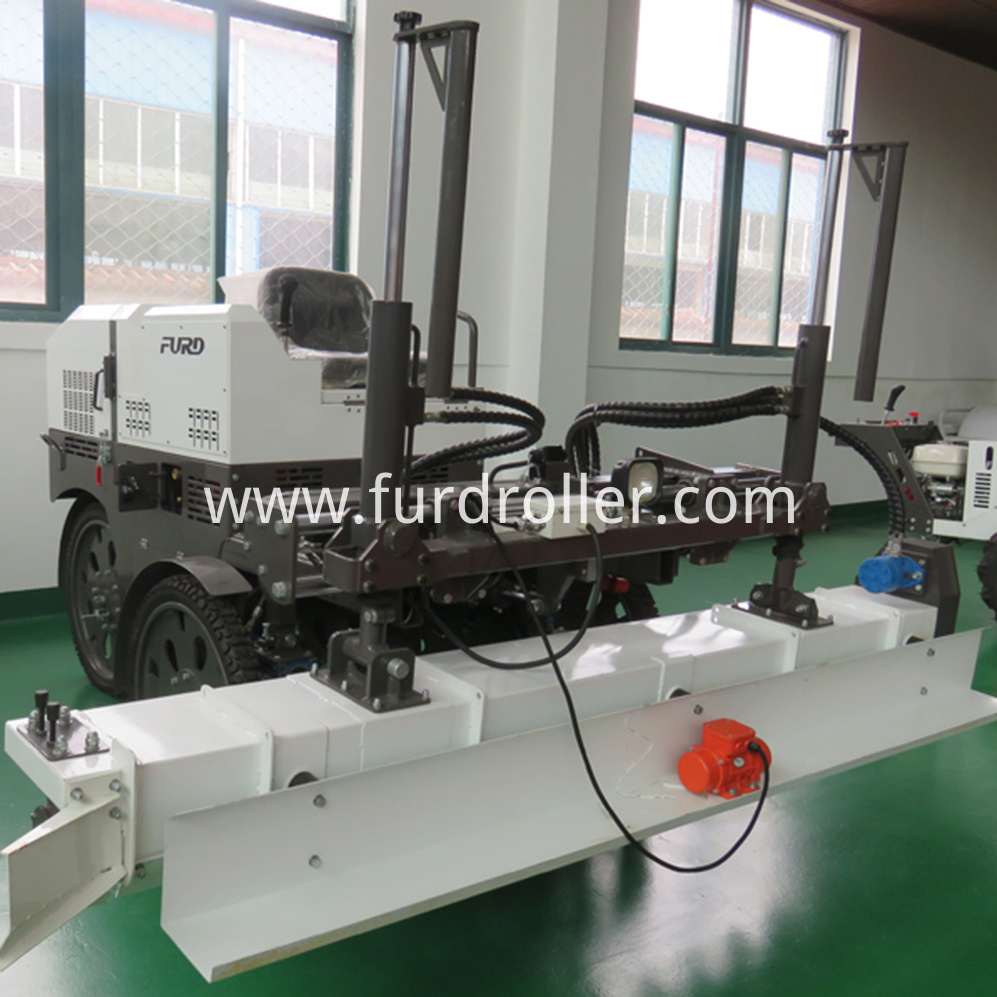

Product Photos

laser screed concretelaser screed concrete machineconcrete laser screedvibrating laser screed

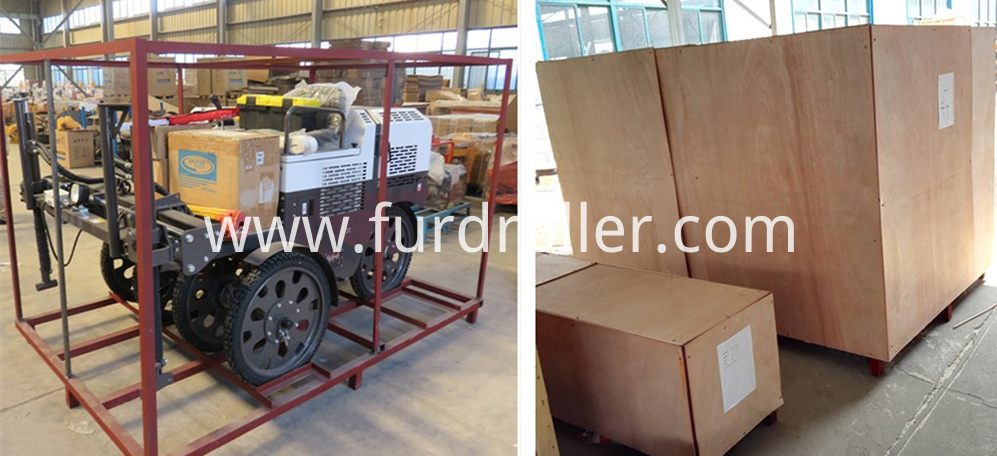

Packaging & Shipping

laser screed packing




Company Information

Jining Furuide Machinery Manufacturing Co., Ltd is high-tech enterprise specialized ín research& development and manufacture of Vibratory Road Roller since 2006. Our main products are: Road Roller, Concrete Laser Screed, Concrete Truss Screed, Mobile Light Tower, Road CrackSealing Machine with CE, EPA, ISO 9001 and ISO1400 certification.

We have professional R&D team in design and producing all of light construction machines,with strict quality control system and continued efforts to ensure high quality of our products.Our products have good quality and competitive prices, have been exported to more than 50countries of the world, such as Australia, America, Canada, Russia, Brazil, Qatar, UAE and soon. FURD aim to supply firstclass products to the domestic market and the global.
