800Kg Double Drum Roller Vibratory Compactor
800Kg Double Drum Roller Vibratory Compactor
800Kg Double Drum Roller Vibratory Compactor
800Kg Double Drum Roller Vibratory Compactor
800Kg Double Drum Roller Vibratory Compactor
800Kg Double Drum Roller Vibratory Compactor
800Kg Double Drum Roller Vibratory Compactor

800Kg Double Drum Roller Vibratory Compactor

Get Latest Price
Payment Type:L/C,T/T,Western Union
Incoterm:FOB,CFR,CIF
Min. Order:1 Set/Sets
Transportation:Ocean
Port:Qingdao,Shanghai,Tianjin
Product Attributes

Model No.FYL-800

BrandFURD

TypeRoad Roller

Working MethodVibration

AxleBiaxial Dual-Drum

Grinding Wheel TypeLight Grind

Compaction Depth35cm

Engine TypeDiesel Engine

Travel Speed35cm/s

Centrifugal Force27KN

CertificationISO 9001:2008

ConditionNew

Weight800KG

Drive TypeHydraulic Transmission

Vibration ControlElectromagnetic Clutch

Water Tank26L

Steel Wheel Diameter350mm

Steel Wheel Width635mm

Packaging & Delivery
Selling Units : Set/Sets
Package Type : Plywood Case
Product Description

Production Description:

FURD Road Roller (sometimes called a roller compactor, or just roller) is a compactor type engineering machine used to compact soil,gravel, concrete, or asphalt in the construction of roads and foundations, similar rollers are used also at landfills or in agriculture. FYL-800 manual double drum roller vibratory compactor has three types of engine, China air cooled diesel engine, China water cooled diesel engine and Honda gasoline engine.  It adopt hydraulic transmission, infinitely variable walking speed, double drum hydraulic drive, hydraulic steering, mechanical vibration, the vibration capacity is 2.0ton.

FYL-800 road roller

Technical Specification:

FYL-800 Walk Behind Double Drum Vibratory Roller

1). Compact design and good performance, operate radius small, can work in small area, suitable for groove backfill;
2). Hydraulic double drum drive and hydraulic steering;
3). NSK bearing, MITSUBOSHI triangle belt, ensure the excellent work performance;
4). Electrical startup, vibration control by electromagnetic clutch, easier operation;
5). Foldable handle with easy control and vibration-reduction design;
6). Large rubber shock mounts absorb vibration and shock to the upper components, reducing equipment wear and operator fatigue;
7). Engine option: Honda GX390 gasoline engine , China water cooled diesel engine or air cooled diesel engine.

Model FYL-800 FYL-800C FYL-800CS
Walk Speed 0-4km/h
Gradeability 30%
Drive Type Variable Piston Pump (Hydraulic Drive)
Vibration Control Electromagnetic Clutch
Static Linear Load 55N/cm 55N/cm 40/60N/cm
Nominal Amplitude  0.5mm 0.5mm 0.6mm
Vibration Frequency  70HZ
Exciting Force 20KN
Water Tank 26L
Hydraulic Oil Tank 20L
Engine Model Honda GX390 CF186F 90N Water-cooled Diesel
Power 13.0HP 9.0HP 9.0HP
Steel Wheel Size φ350*635mm*2
Package Size 1510X870X1920mm
Net Weight 780kg 780kg 800kg
Starting Mode Hand/Electric
Product Photos:

vibratory roller detail

double drum rollers

hydraulic road roller

Honda gasoline vibratory roller with steering

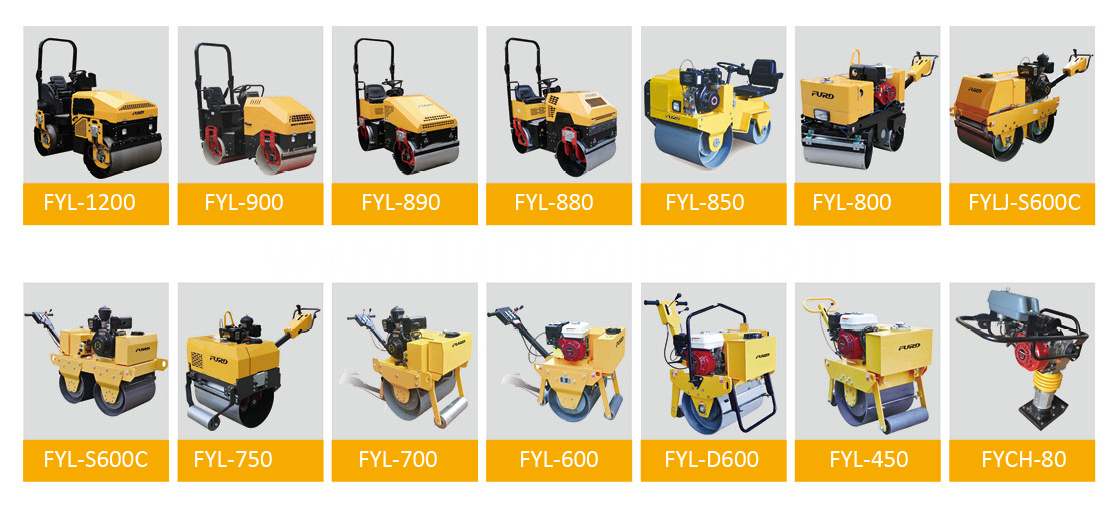

FURD Road Roller Series:

FURD ROAD ROLLER


Company Profile:

FURD Machinery Manufacturing CO., LTD is a high-tech enterprise specialized in research, design, manufacture of light construction machines since 2008, FURD main products are Vibratory Road Roller, Concrete Laser Screed, Concrete Truss Screed, Power Trowel, Portable Light Tower, Road Crack Sealing Machine, Concrete Cutter. We have obtained certificates of CE, ISO9001, ISO1400 and 10 national patents.
FURD factory has experienced technical team in design and production, OEM and customized order are welcomed. With good quality and competitive prices, FURD products have been exported to more than 60 countries and regions, such as Southeast Asia, United States, Canada, South America, South Africa, Middle East and so on.

vibratory roller workshop

vibratory roller certificate
